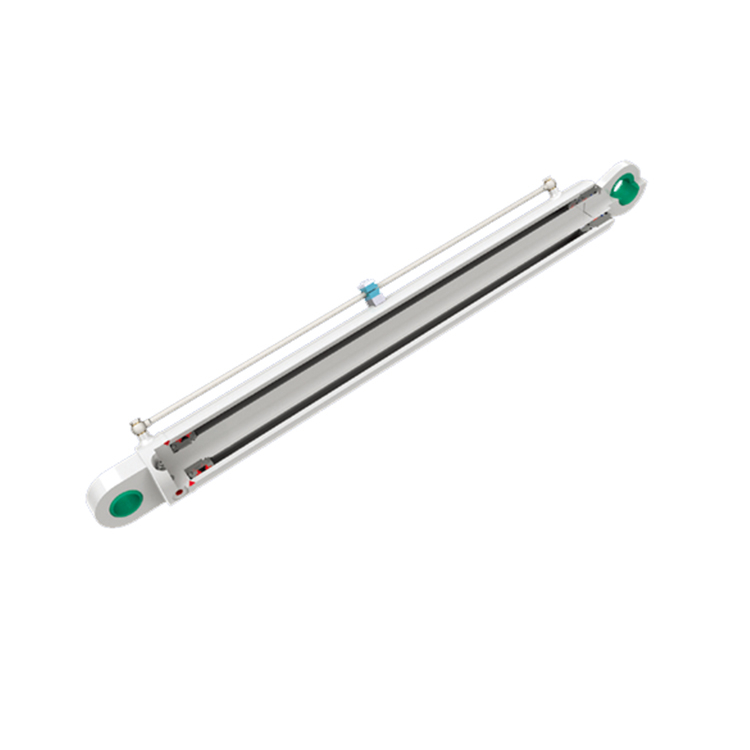

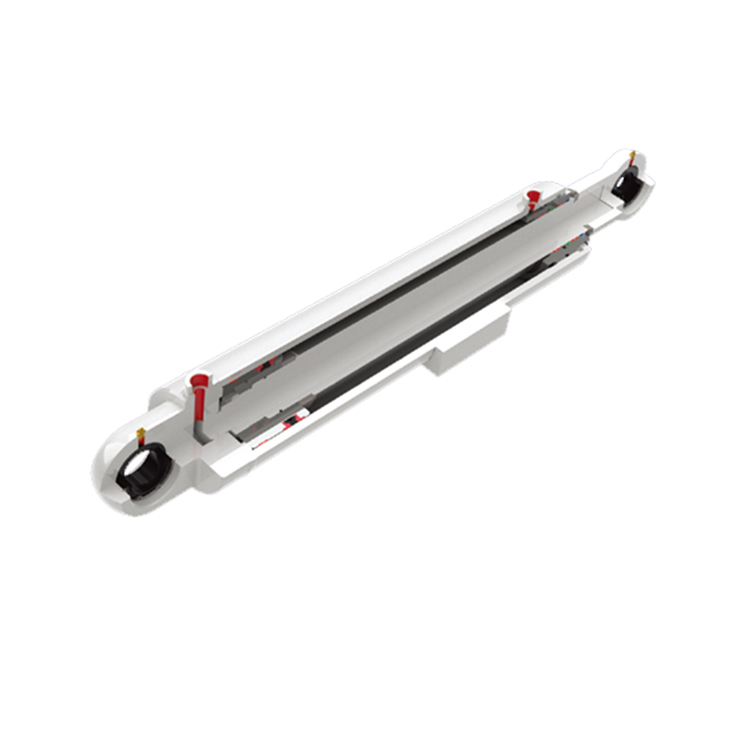

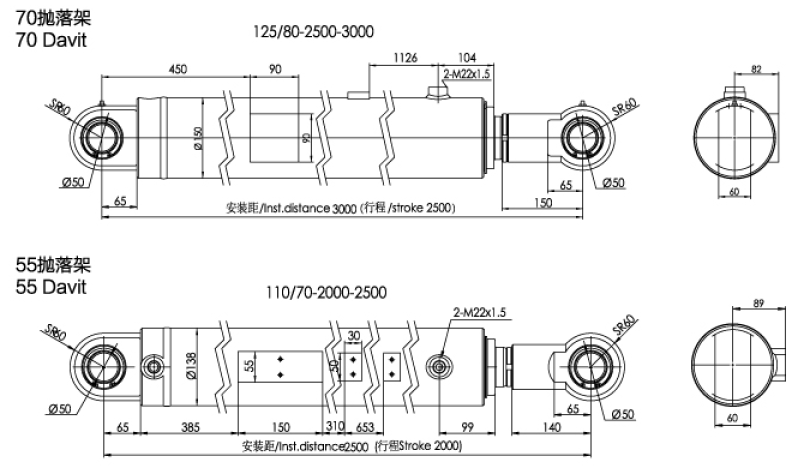

HSGL 125/80-2500-3000
YANCHENG HAITE
Used for lifting of life boat
Design pressure: 25Mpa
Working pressure: -25℃~+55℃
The products applied in the shipbuilding industry have successively passed the certifications of nine classification societies including CCS, DNV-GL.KR, ABS, BV.LR, NK, RINA and RS

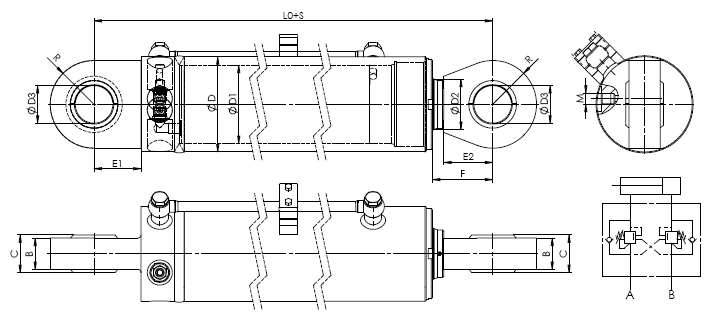

Bore φD1 | Rod φD2 | OD φD | ΦD3 H8 | B | C | R | E1 | E2 | F | M | L0 |
80 | 40 | 102 | 40 | 45 | 32 | 40 | 40 | 40 | 55 | M18x1.5 | 240 |
125 | 80 | 152 | 60 | 50 | 60 | 70 | 75 | 78 | 96 | M18x1.5 | 395 |
130 | 80 | 160 | 70 | 75 | 65 | 75 | 90 | 80 | 103 | M18x1.5 | 495 |
140 | 80 | 165 | 70 | 57 | 62 | 75 | 85 | 80 | 110 | G3/4" | 445 |
180 | 80/100 | 219 | 80 | 95 | 70 | 90 | 105 | 85 | 121 | G3/4" | 534 |
220 | 140 | 268 | 110 | 90 | 100 | 120 | 140 | 140 | 176 | G3/4" | 726 |
