Four common types of hydraulic cylinders and their characteristics: Piston hydraulic cylinders are suitable for bidirectional drive and have a longer stroke; The plunger type is a single-acting cylinder, with a simple structure and suitable for long strokes and vertical use. The telescopic hydraulic cylinder is composed of multi-stage pistons and is suitable for occasions where space is limited but a long stroke is required. The oscillating hydraulic cylinder can output torque and is suitable for applications that require reciprocating rotary motion. Different types of hydraulic cylinders are widely used in industries, construction machinery and other fields according to their structures and working methods.

With the advancement of technology and the growth of industrial demand, hydraulic cylinders, as the core actuating components of hydraulic machinery, are driving industry transformation through technological innovation and digital transformation. China's hydraulic industry has shifted from structural shortage to intelligent development. By optimizing energy conversion efficiency and market supply and demand relationships, it has not only enhanced production safety and economic benefits but also opened up a new path for industrial upgrading. The rise of the hydraulic cylinder network has further accelerated the flow of information, indicating that the industry will embrace a broader development prospect.

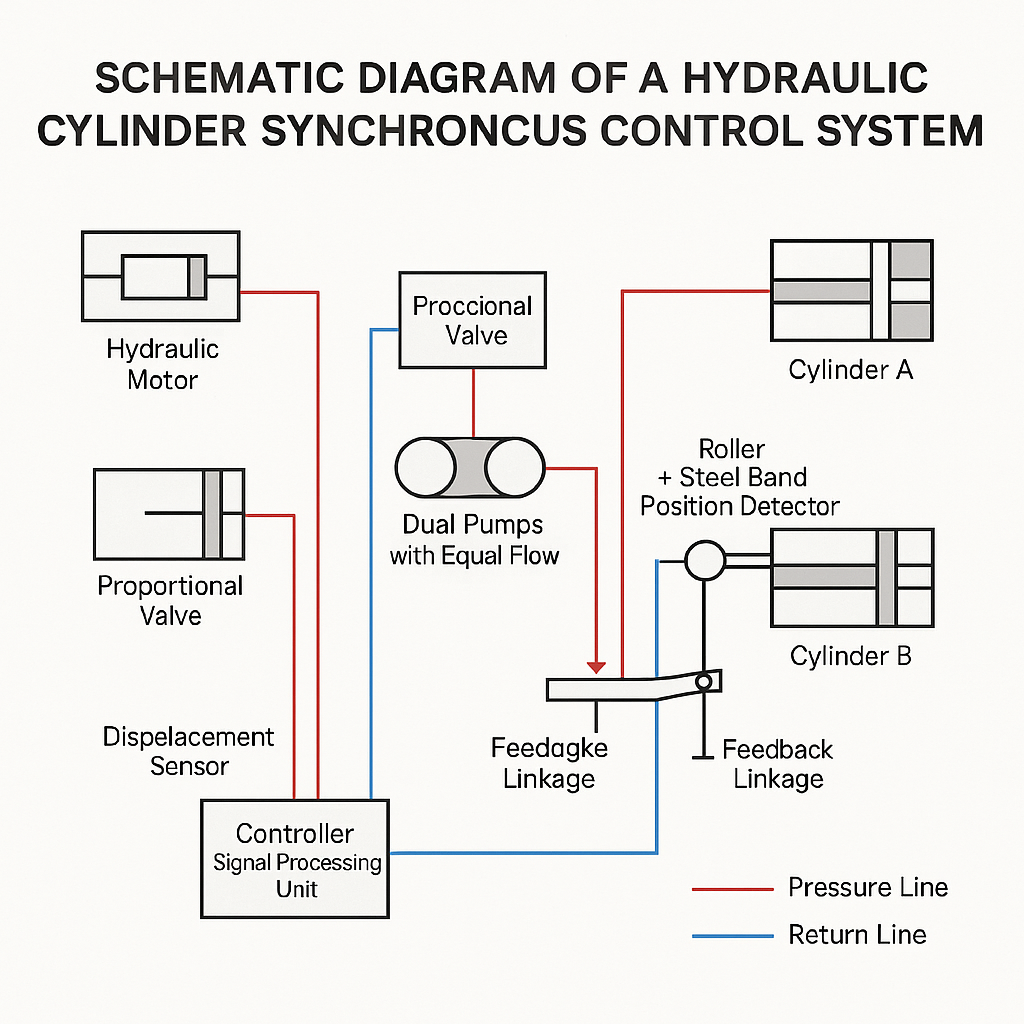

Achieving long-term, stable synchronization of hydraulic cylinders involves a balance of effective system design, precise components, and regular maintenance. While each method of synchronization has its pros and cons, combining these strategies (like using high-precision parts and closed-loop control) ensures that the hydraulic system performs with high accuracy over time. Regular attention to system health through maintenance and calibration can also prevent the common issues that may arise with prolonged use.

Before assembling the hydraulic cylinder, all parts must be thoroughly cleaned, and all sealing devices must be correctly installed with careful attention to the orientation of O-rings, Y-shaped, and V-shaped seals to prevent oil leakage. During assembly, apply hydraulic oil appropriately to sliding surfaces, replace any disassembled seals with new ones, and tighten threaded connections to specified torque standards. After assembling the piston and piston rod, their coaxiality and straightness must be checked to ensure they are within tolerance. The piston assembly should move smoothly without resistance. When installing the cylinder onto the main machine, sealing rings must be properly fitted at the oil ports to avoid leaks. Finally, the assembled cylinder should undergo several low-pressure reciprocations to expel internal air.

The selection of sealing components needs to comprehensively consider the working environment (temperature, pressure, medium), movement mode (static/dynamic), equipment compatibility (brand, size), and life cost (wear resistance, maintenance frequency). Common sealing materials such as NBR (oil-resistant), FKM (high-temperature resistant), EPDM (water-resistant), PTFE (corrosion-resistant), and VMQ (food grade) each have their own applicable scenarios. Common faults include leakage (installation errors, aging, size issues). During maintenance, it is necessary to disassemble, measure, lubricate and install in a standardized manner, and conduct regular inspections to extend the service life. Correct selection can reduce the risk of equipment downtime. If necessary, you can contact the technical team to customize a solution.

When selecting a hydraulic cylinder, in addition to basic parameters such as bore size, stroke length, working pressure, and mounting type, several practical factors must be considered. For applications involving high loads or high-speed operation, cylinders with built-in cushioning are recommended, or an external flow control (reducing) valve should be installed to ensure smooth and safe performance. Moreover, it is critical to match the hydraulic oil with the appropriate seal material, as using incompatible combinations can shorten the cylinder’s service life.

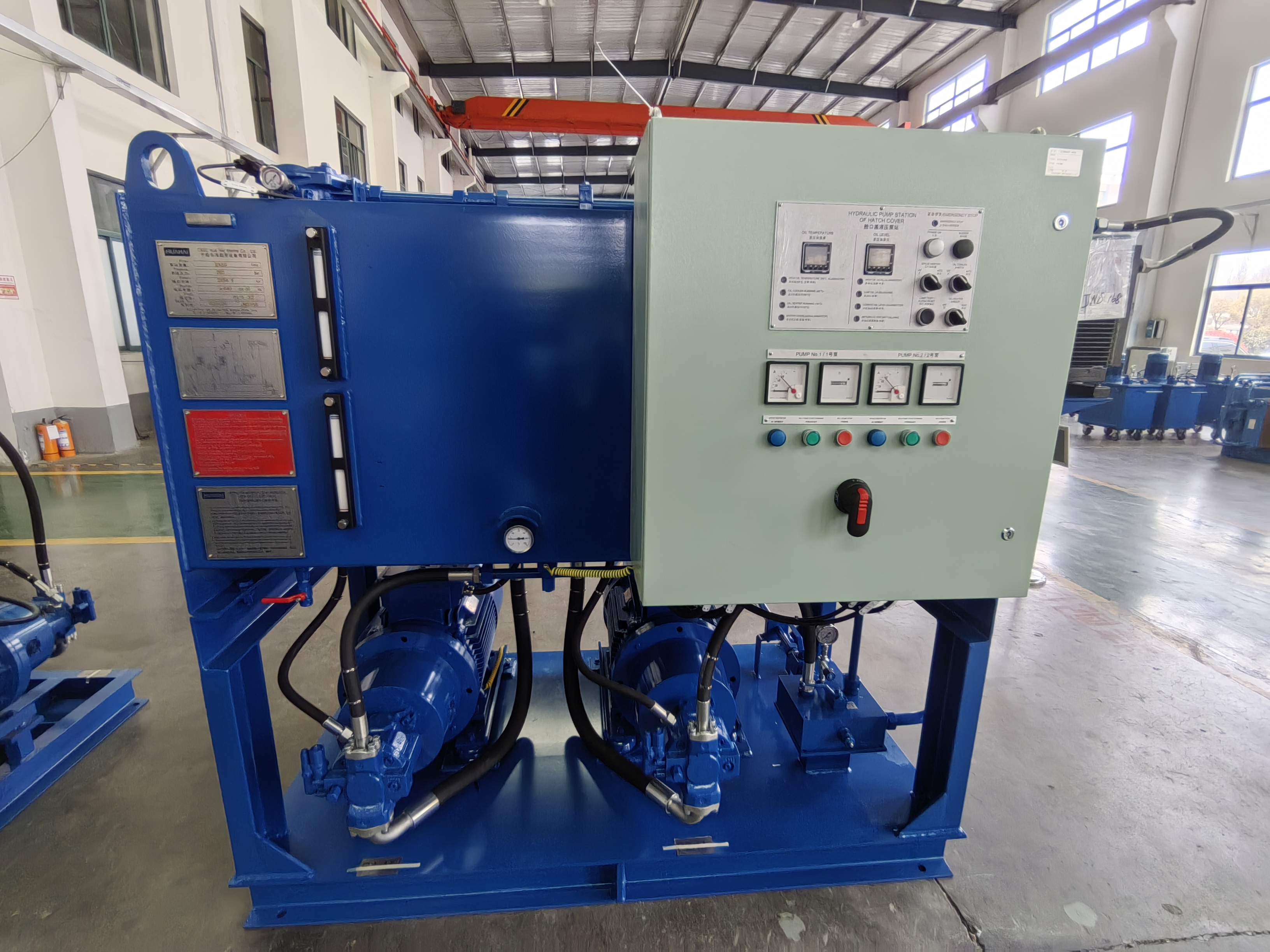

Marine hydraulic pump stations require strict manufacturing standards due to harsh offshore conditions with high salinity and corrosion. Key requirements include classification society approval of design drawings, waterproof and insulated components, certified hoses and marine-grade cables, built-in alarm systems, corrosion-resistant oil tanks, and thorough system cleaning to ensure hydraulic oil quality meets design specifications.

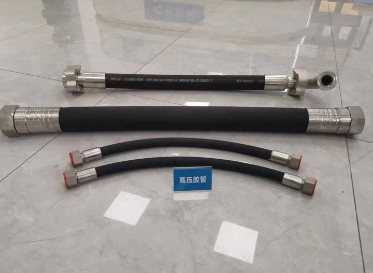

Marine hydraulic hose assemblies are essential in shipboard hydraulic systems due to their flexibility and space-saving design. To ensure performance, key procurement factors include temperature resistance, pressure endurance, internal diameter retention, and acceptable length deformation under stress.
